Details

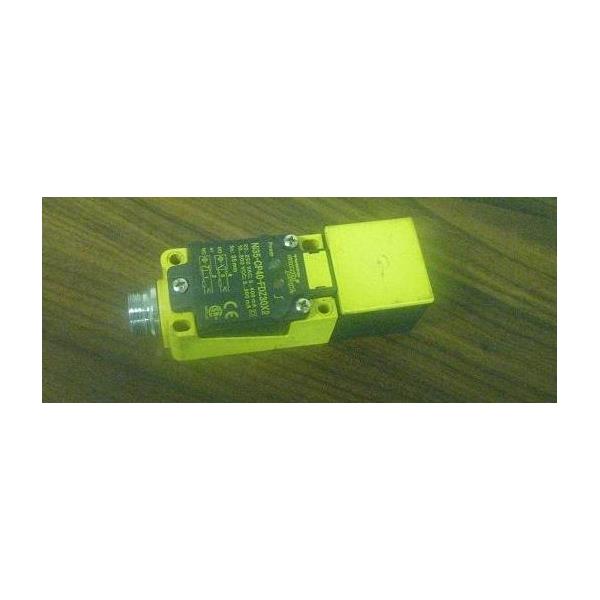

TURCK NI35-CP40-FDZ30X2 INDUCTIVE PROXIMITY SWITCH
Sepcifications:
| Operating Voltage | 20-250 VAC/DC |
| Line Frequency | 40-60 Hz |
| Hysteresis (differential travel) | 3-15% (5% typ.) |
| V drop across conducting sensor |
≤6V at 400mA |
| Output Function |
Connection Programmable Normally Open / Normally Closed |
| Short-Circuit Protected | Yes |
|
Trigger Current for Overload Protection |
≥ 400mA |
| Leakage (off-state) Current | ≤1.7mA |
| Min. Load Current | ≥ 3.0mA |
| Inrush Current | ≤3.0A (≤20ms/5hz) |
| Time Delay before Availability | ≤30 ms |
| Power-On Effect Protection | Incorporated |
| Protection Against Transients | 5kV, 10 ms, 10Kohms |
| Operating Temperature | -25C to +70C (-13F to +158F) |
| Enclosure |
Meets NEMA 1,3,4,6,13 & IEC IP67 |
| Shock | 30 g, 11 ms |
| Vibration |
55hZ, 1mm AMPLITUDE (in all 3 planes) |
| LED Function |
Green:
Red: Output energized |
| Sensing Range | 15mm = .591" |
| Switching Frequency | 150 hz |
| Repeatability | ≤ 2% of nominal sensing range |
| Shielded | Yes |
